MOSKYAUDIO Pre-amp Simulator Power Amp Simplifier Mosky Bright Flame DI Box Effect Pedal

You have now in your hands the most versatile, useful and amazing sounding piece of gear.

The first Zero watt stereo amplifier that will fit in your pedalboard and replace a full amplifier

signal chain, achieving unprecedented analog realism thanks to its stereo mic’d cabinet

simulation, stereo FX loop, tube-like power amp stage, and a full featured clean preamp based on 3 classic amps.

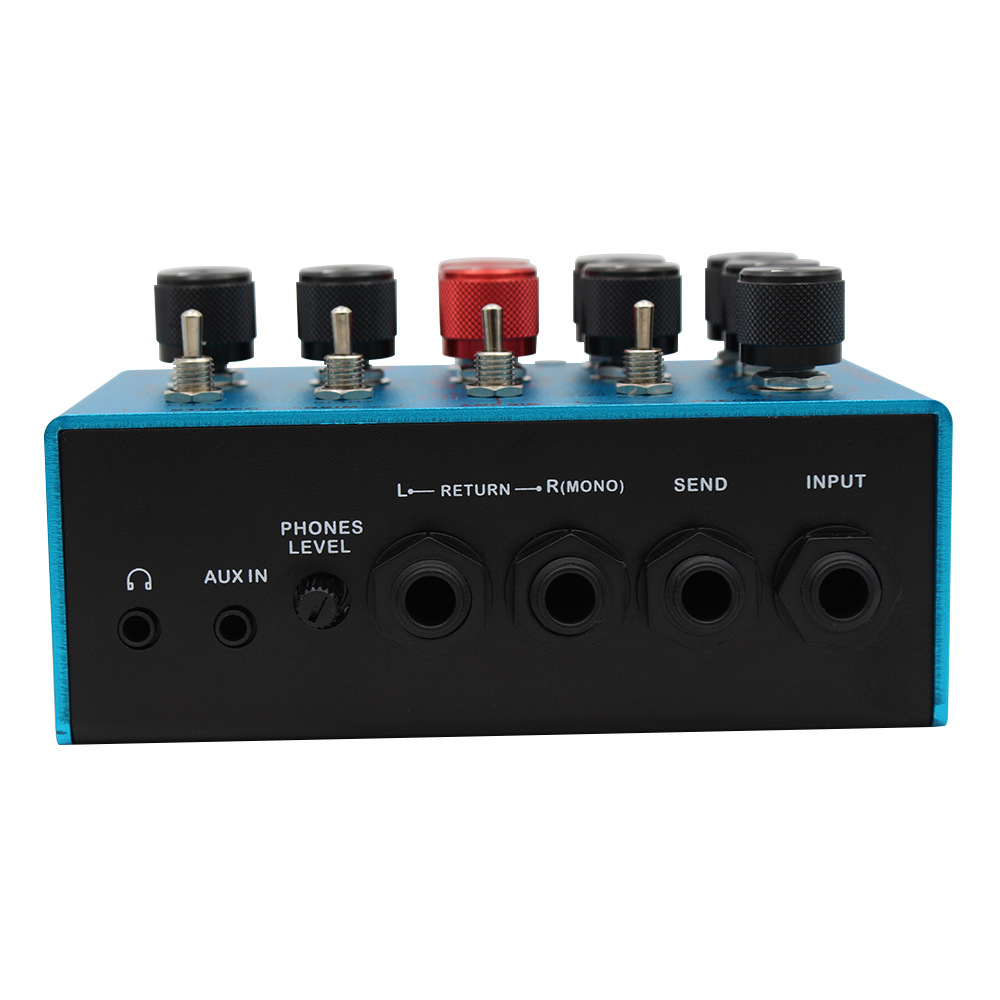

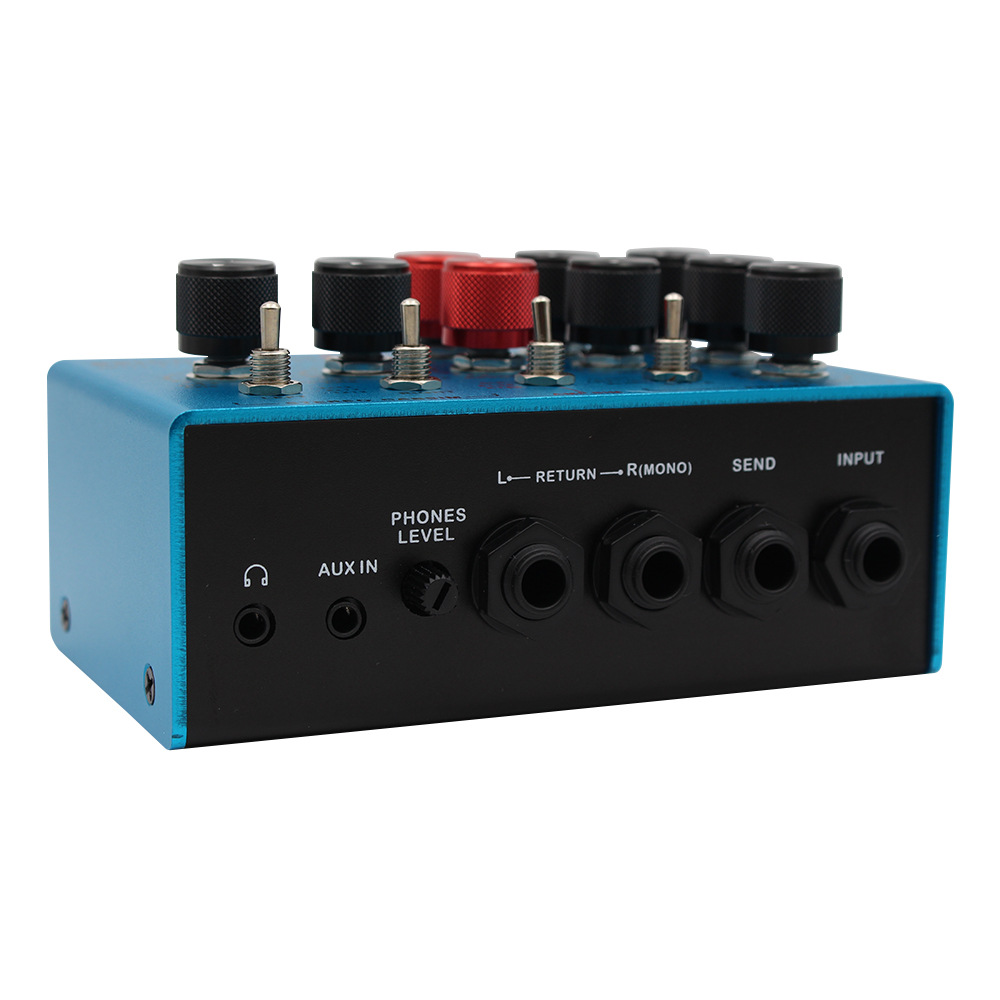

Input Jack: Connect the guitar or other instrument here.

FX Send: The fx send output is after the preamp amp power amp stages, ready to feed your modulation and ambience effects.

* PLEASE NOTE THAT WHEN USING FX LOOPS SOME EFFECTS ALLOWS YOU

TO CHOOSE BETWEEN LINE/MIC LEVEL. NOT SETTING PROPERLY MAY OCURR

ON UNDESIRED CLIPPING RETURNING FROM THE FX LOOP. IF YOUR DEVICE

DOESN’T HAVE A SELECTABLE GAIN ADJUSTMENT, PLEASE TAKE CARE ON

SETTING UP FIRST YOUR DESIRED AMOUNT OF GAIN IN THE PREAMP SECTION,

THEN ADJUST THE VOLUME, THIS WAY YOU CAN HAVE ABSOLUTE CONTROL

OVER SOME UNDESIRED CLIPPING. IF YOU NEED MORE VOLUME, YOU’LL BE

ABLE TO ADD MORE FROM THE AUDIO DEVICES POST-SIMPLIFIER (PA System,

In-ear Monitors, Floor/Side Powered Monitors, Audio Interfaces and even the

Headphones volume control) avoiding clipping completely.

●FX return Right (mono): Connect the right (mono) output from your stereo effects here. ●FX return Left: Connect the left side of your effects here. If this input is unconnected,

the left side will take the signal from the FX Return Right (mono) side.

●TRS Right (mono) Out: Carries the right side output or the input signal (bypass), if

selected.

●TRS Left : Carries the left side output or the input signal (bypass), if selected. If the left

side is disconnected and not in bypass mode, the Right side will sum both outputs. ●DI Right: Carries the Right side output in a balanced signal.

●DI Left: Carries the Left ide output in a balanced signal.

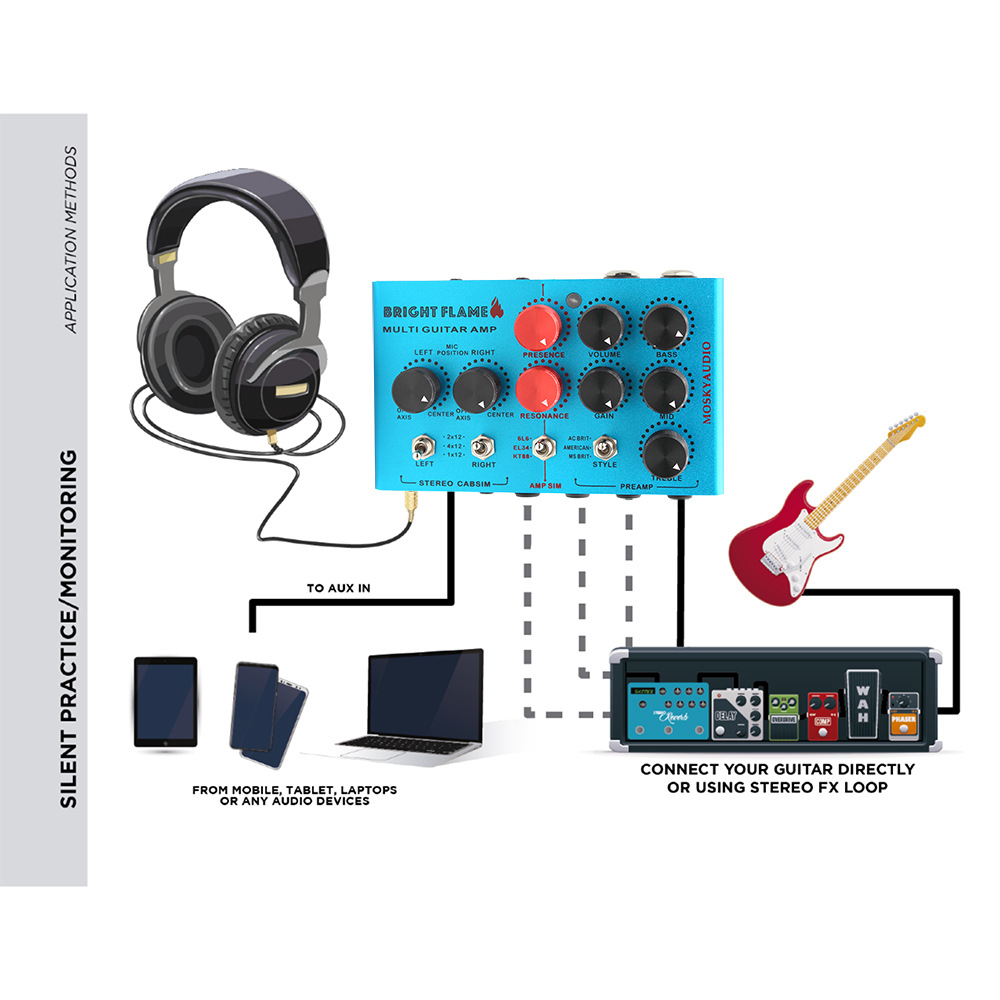

●Aux In: The auxiliary input receives a signal from an mp3 player, phone, or any audio

device, and sends the signal in stereo to the headphone out. The aux signal will not

sound through the regular outputs. Perfect for monitoring or late night practice.

●Headphone out: Connect your headphones here.

--------------------------------

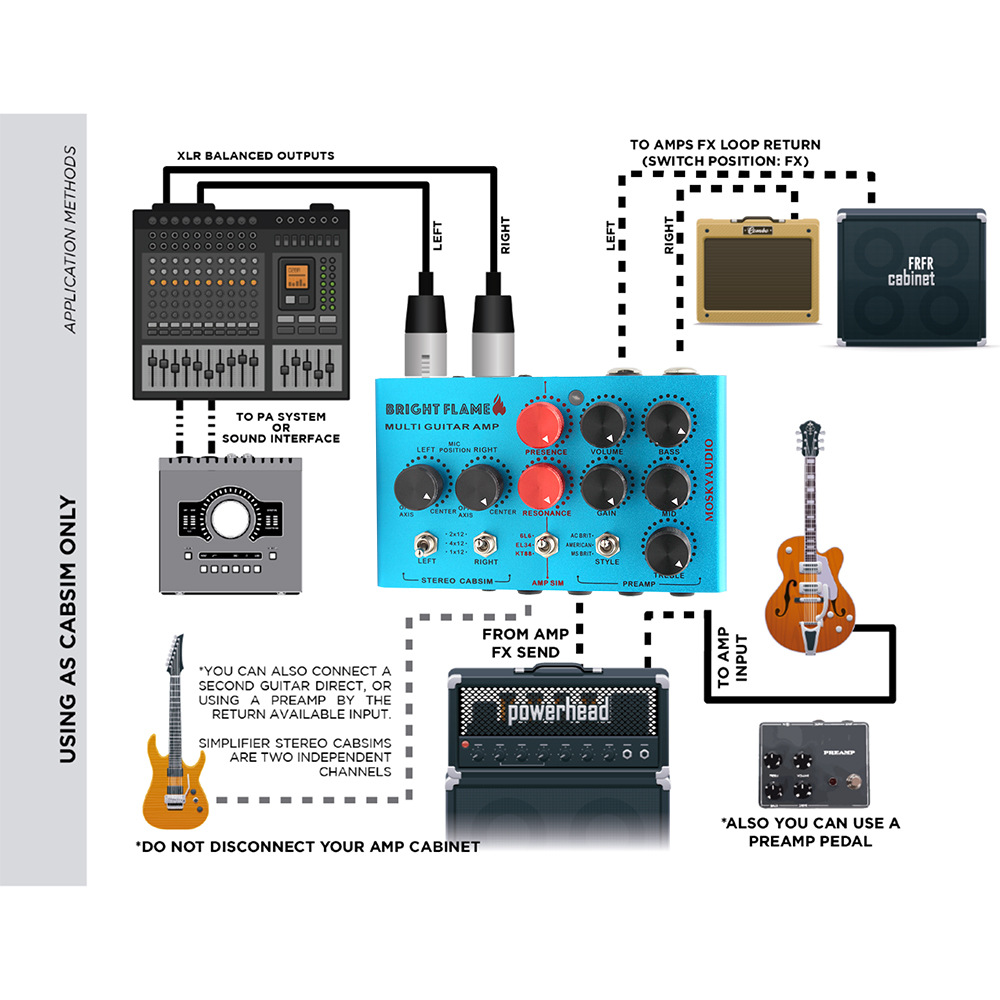

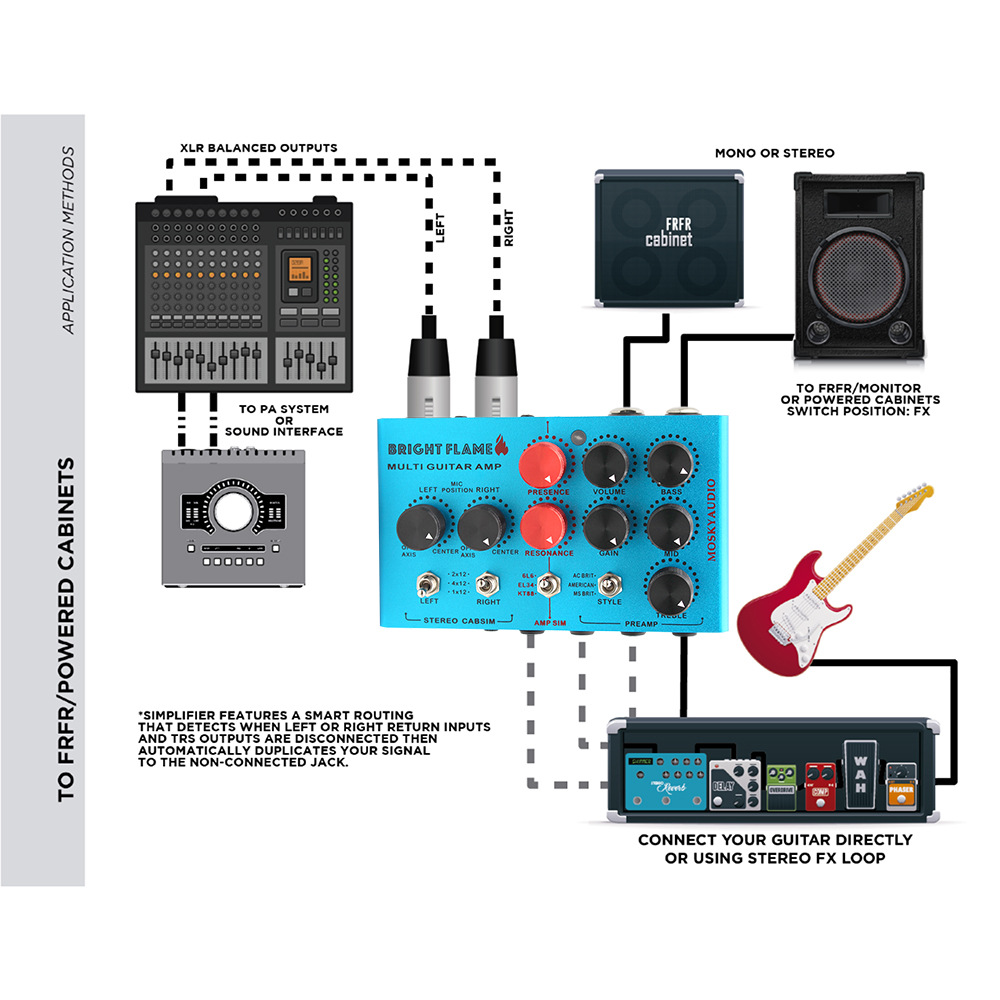

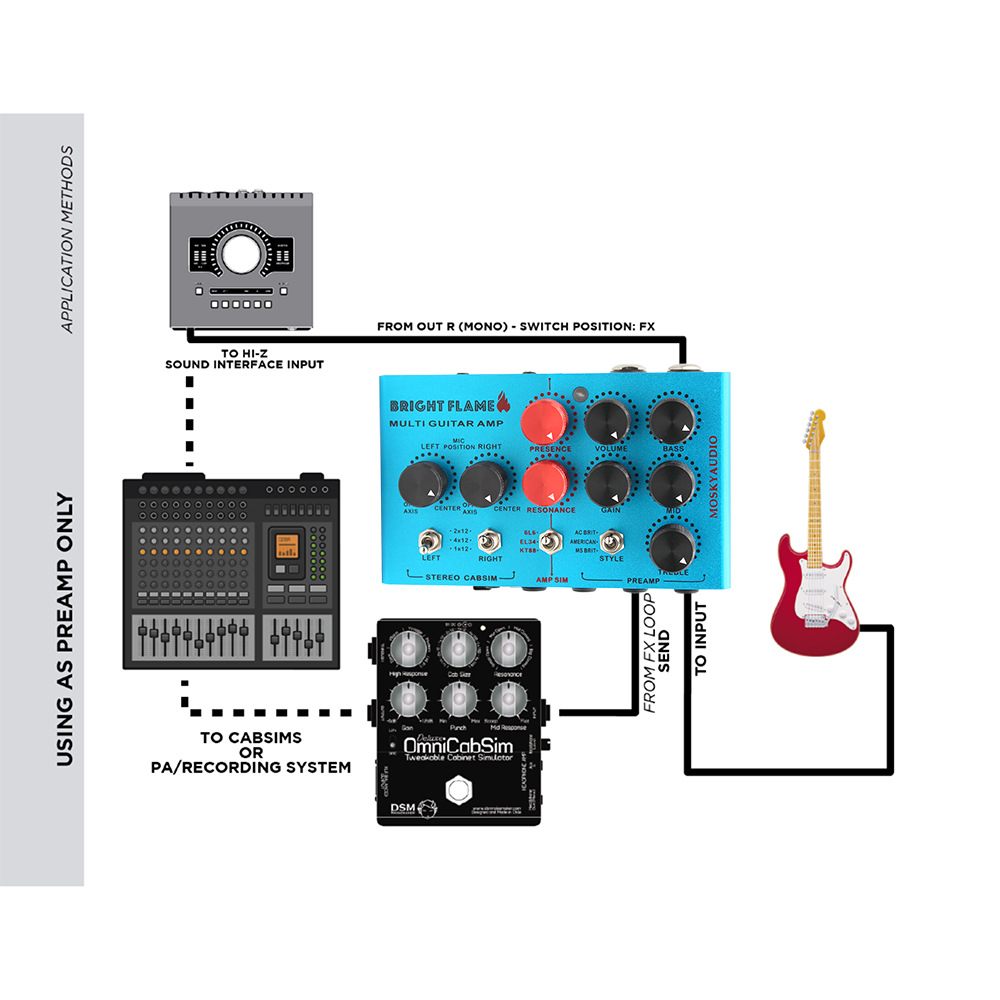

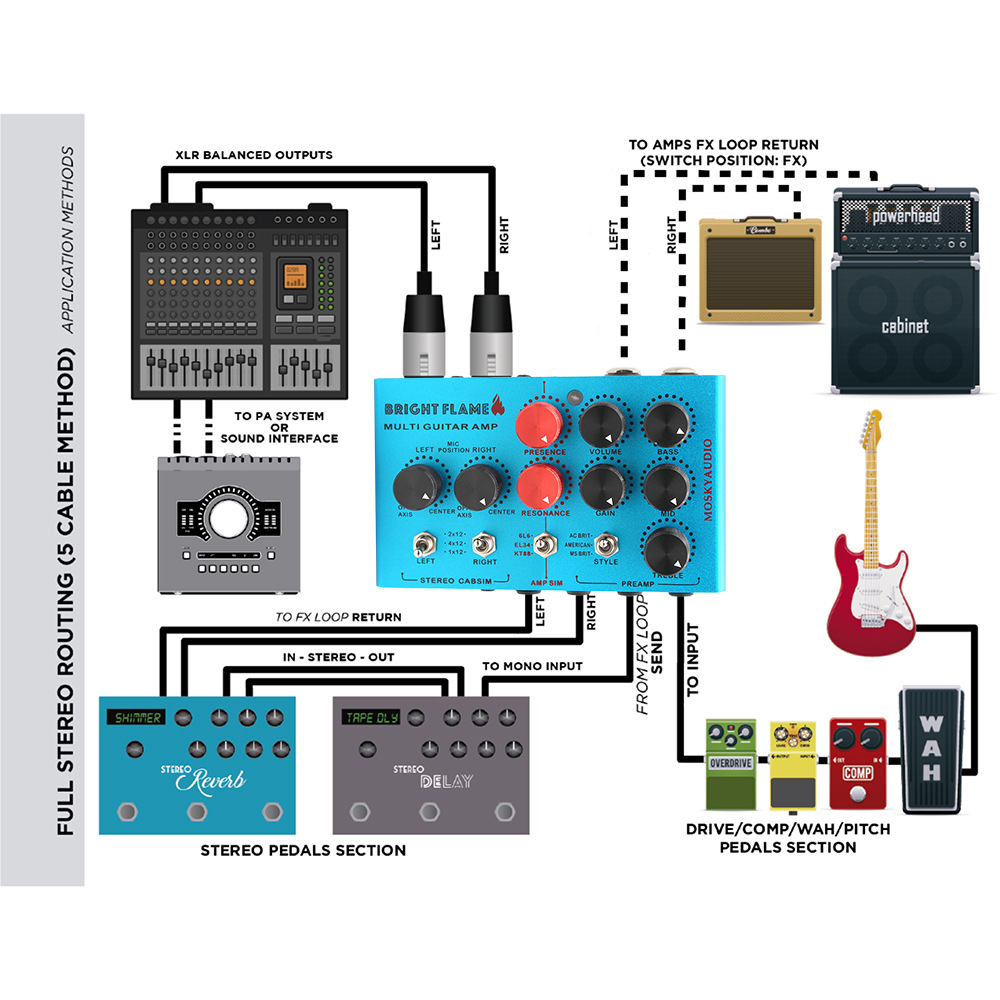

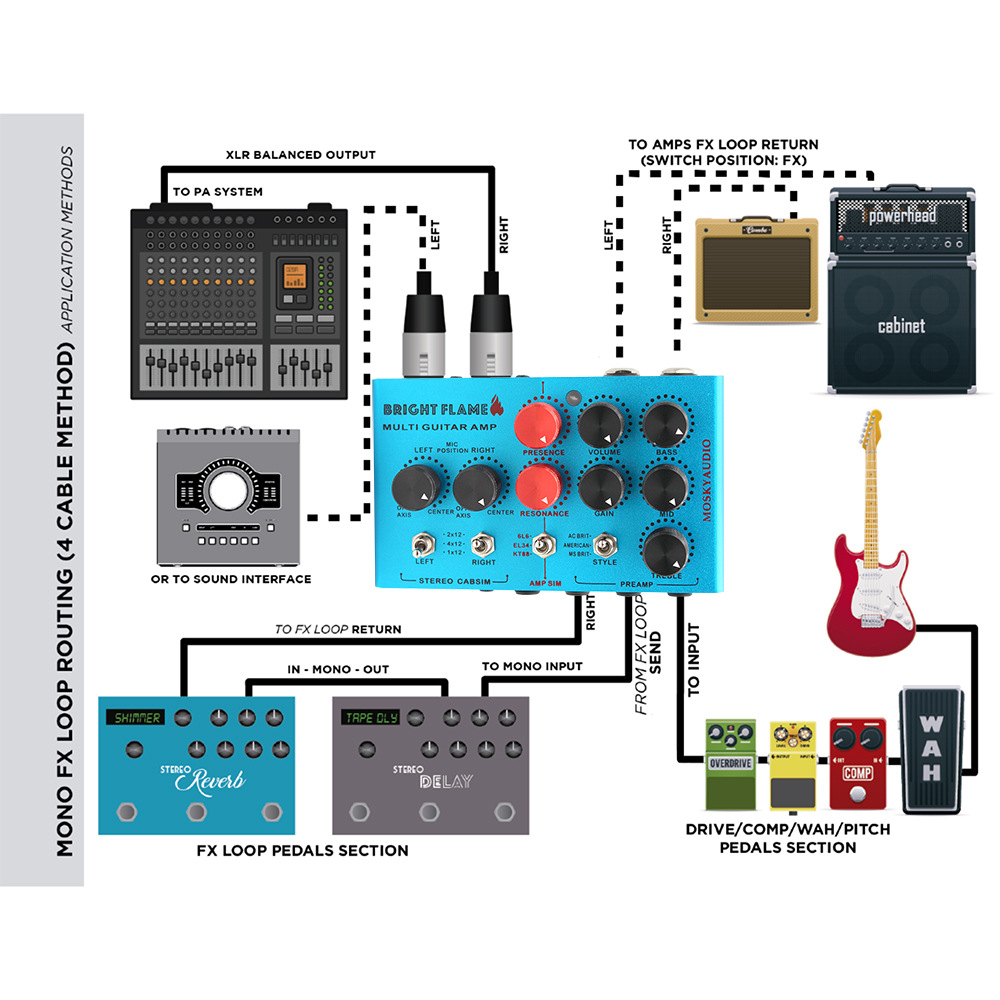

All these connections makes the Simplifier one of the most versatile devices on the market. Here are a few ways you can connect it:

推荐连接 如下：

--------------------------------------------------

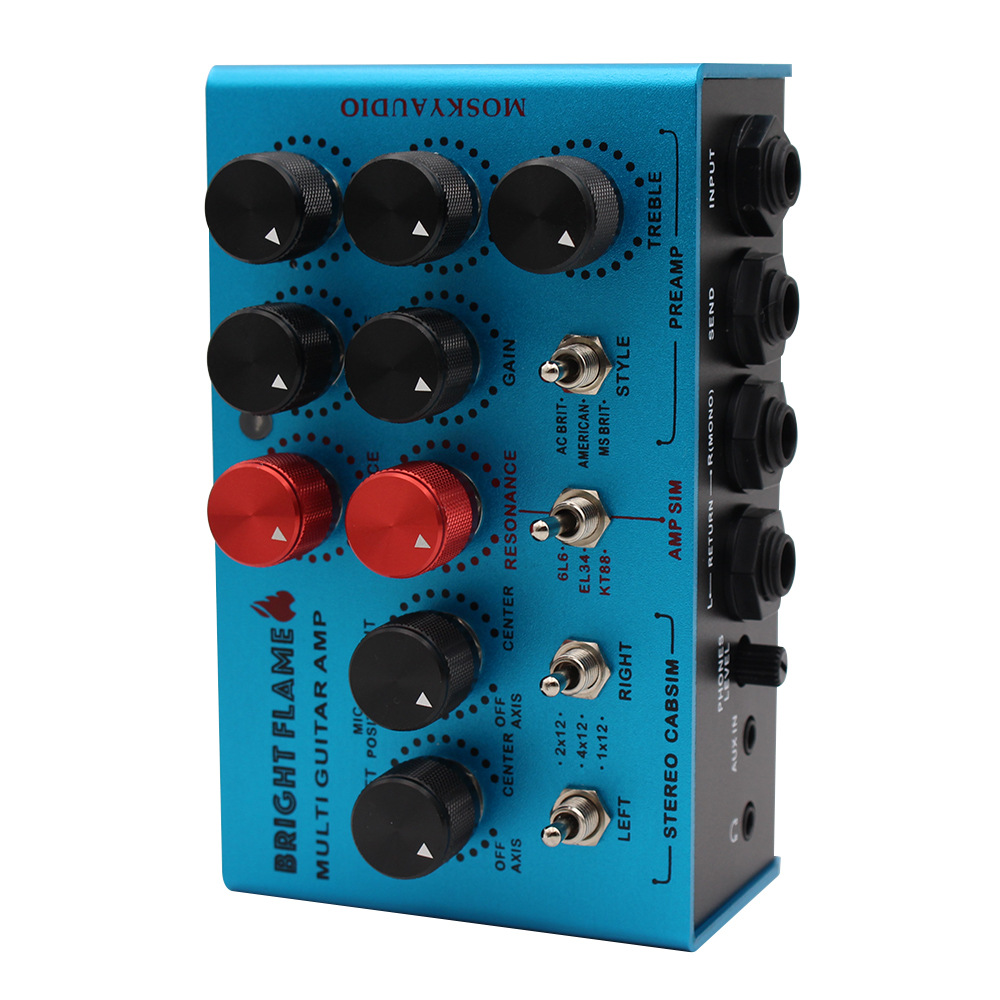

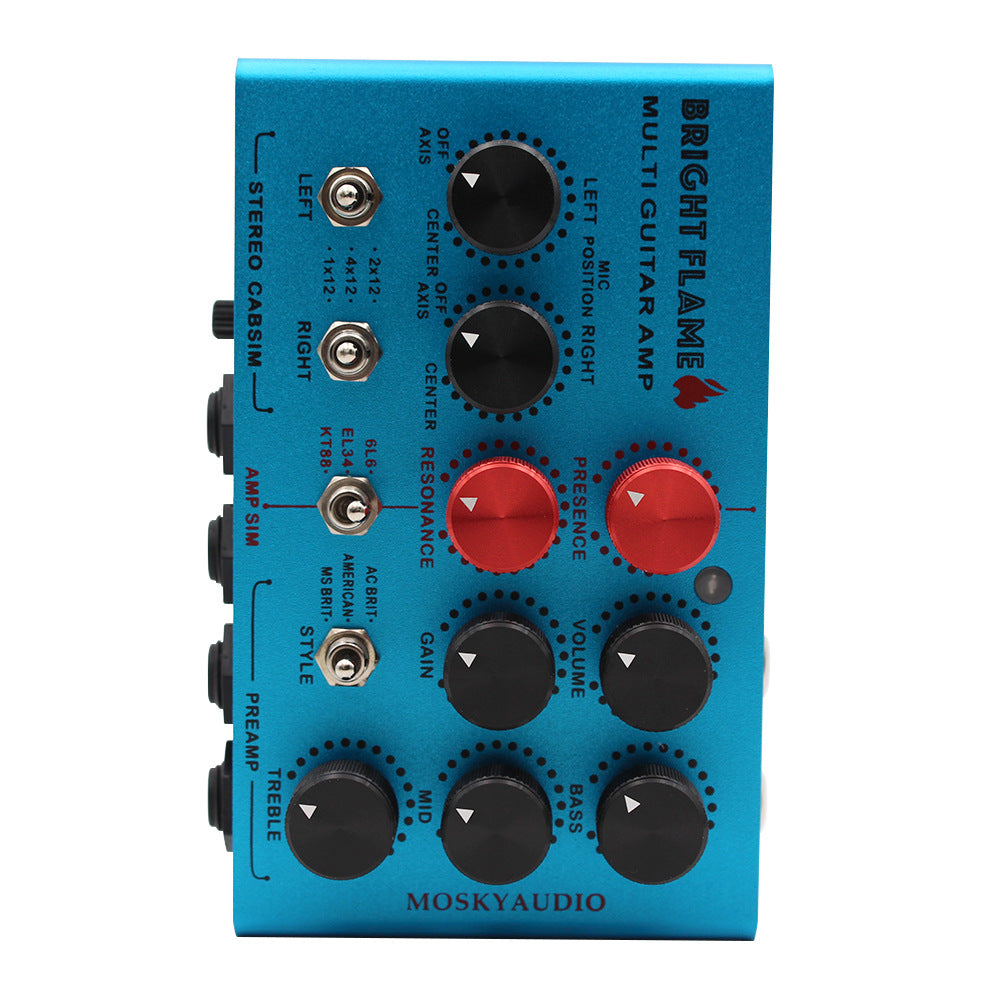

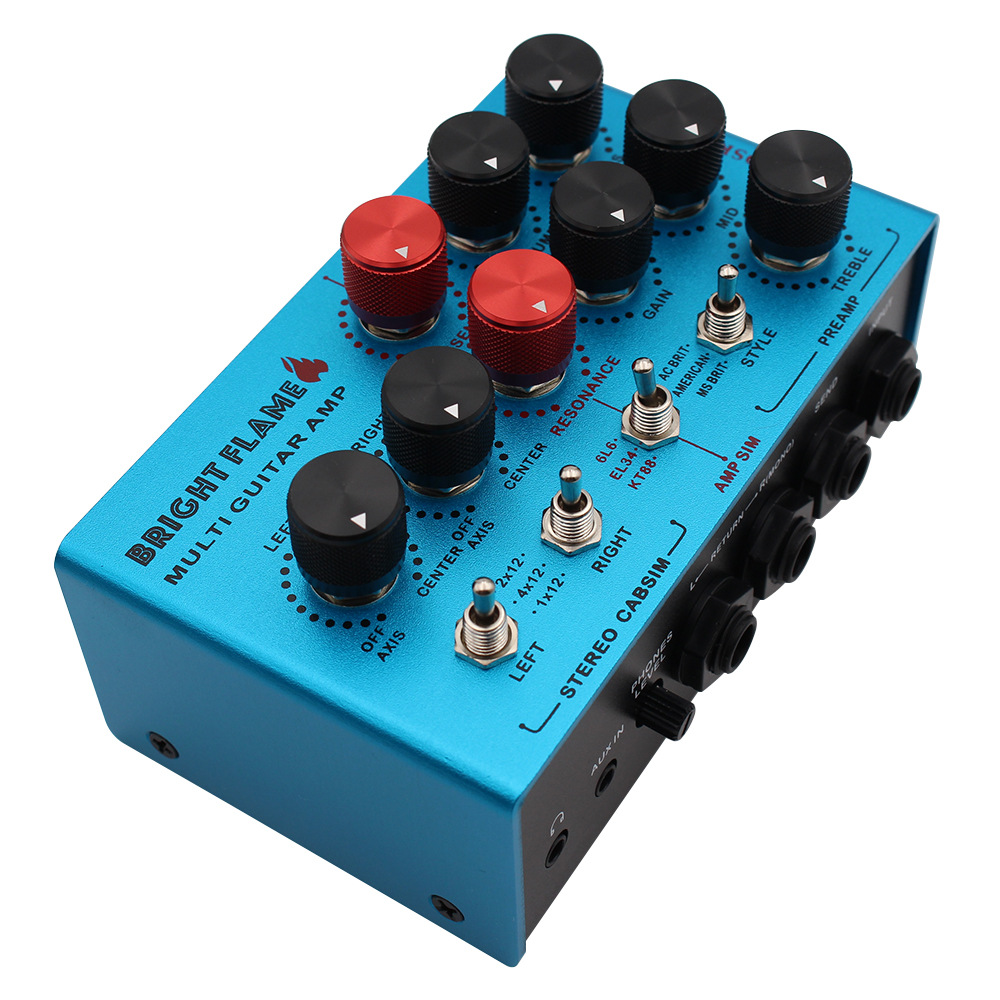

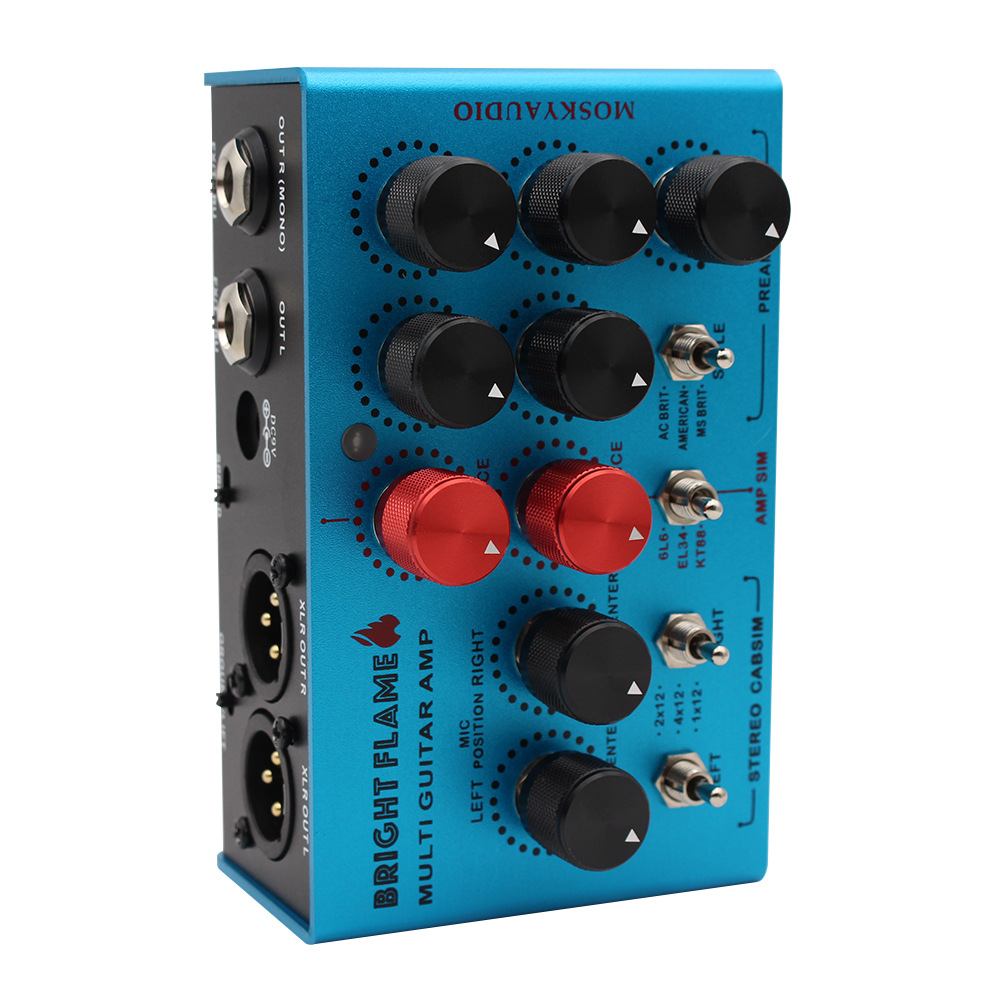

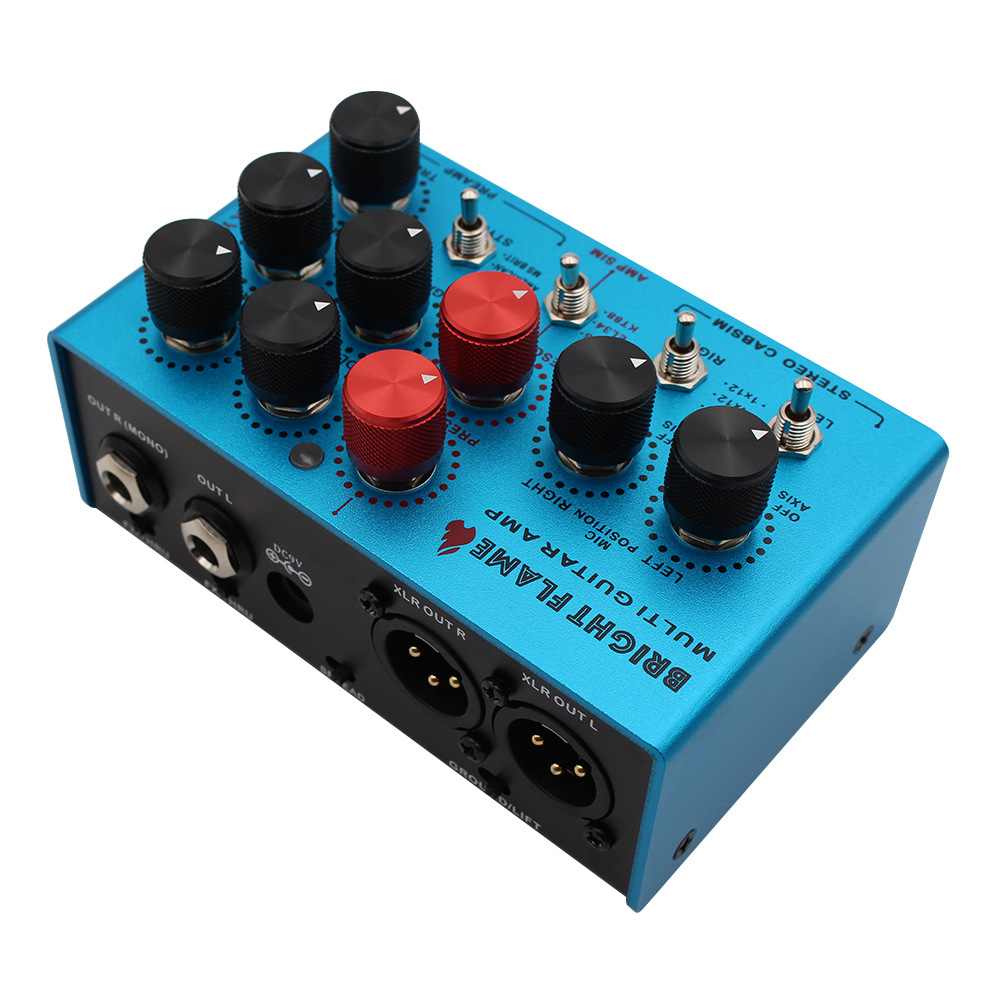

Controls and Switches:

Preamp Section:

Amp model: Selects between 3 classic amplifiers:

 AC BRIT: Classic AC30 sparkly and three-dimensional sound. A true British heritage since

the 60's.

 AMERICAN:Classic blackface deluxe sound. Sweet and dynamic with a balanced response.

By far the most used amp on studio recordings

 MS BRIT: Classic clean-to-crunch vintage plexi style amp. The sound that defined rock music.

Gain: Sets the gain of the selected amp model.

Level: Sets the preamp master volume level.

Tonestack: The tone stack on the Simplifier is a genuine configurable three band classic

amplifier topology, keeping the same feel, response and interaction of the original amp.

High: Controls the high frequency band

Mids: Controls the mid band (AC Brit 500Hz, American 450Hz, MS Brit 650Hz)

Lows: Controls the low end frequencies.

Power amp section:

This stage is an accurate approximation of the interaction between the power tubes, output

transformer and global feedback, which produces a particular frequency response for different

tubes and speakers.

PRESENCE: Controls the hi-mids response just like the feedback based presence control on

tube amps. Turn it up to cut through the mix or turn it down to sweeten aggressive distortions.

RESONANCE: Controls the low-end and resonance peak caused by transformer-speaker

interaction in tube amps. Now you can control the dampening factor and get super tight lowend

clarity and authority.

POWER TUBES SECTION: 3 way toggle switch that mimic the different

response of classic tube types:

EL34: Complex mid response with a compressed feel.

6L6: A more open and dynamic response with deeper bass and sparkling highs.

KT88: Similar to 6L6 but with improved lowend range, perfect for bass or 7+ string Guitars.

Stereo Cabsim:

MIC POSITION: Controls that responds like a real CENTER/OFF AXIS microphone

position adjusting the precise amount of high-end roll off you look for. As usual with real mics

and speakers, placing the MIC outside the center works best for distorted tones, and cleans

sound best near the center.

Cab Style Switch:

1x12: Open Back combo with vintage speakers that emphasize the high mids (2-4 Khz), great

for cutting through the mix without too much low end mud.

4X12 : Huge sounding resonant low end cabinet with modern speakers, great for rock and

heavier tones with sparkly high end, and in-your-face lows.

2x12 : Warm and well rounded open back combo, with rich mids ( 1-3 KHz) and creamy high

end.

Other Switches and Controls:

SPREAD CONTROL: This unique feature allows you to create a pseudo stereo imaging, by

delaying certain frequencies (like a phaser effect). It will make your sound bigger

and 3 dimensional, even if you are using a mono configuration.

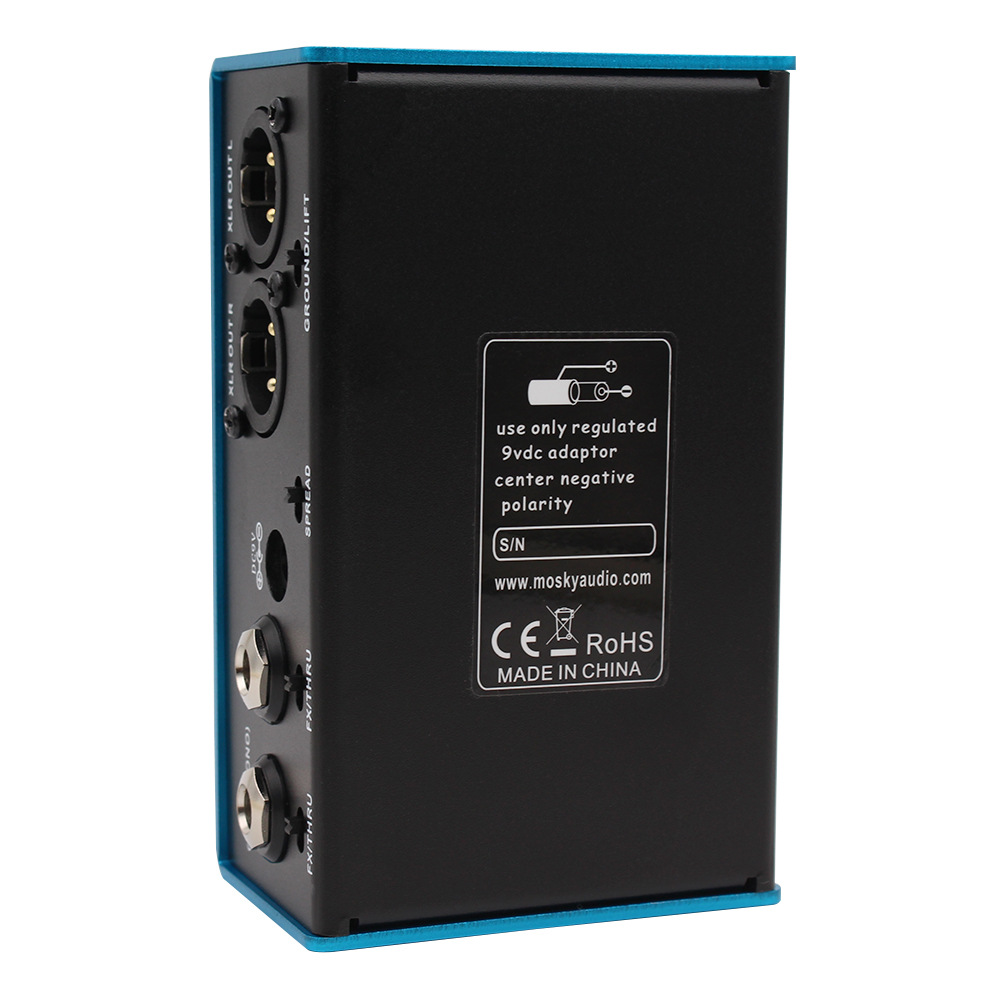

GND LIFT: Disconnects the ground connection from the XLR out. Use in case you are getting

hum problems when connecting to an external device.

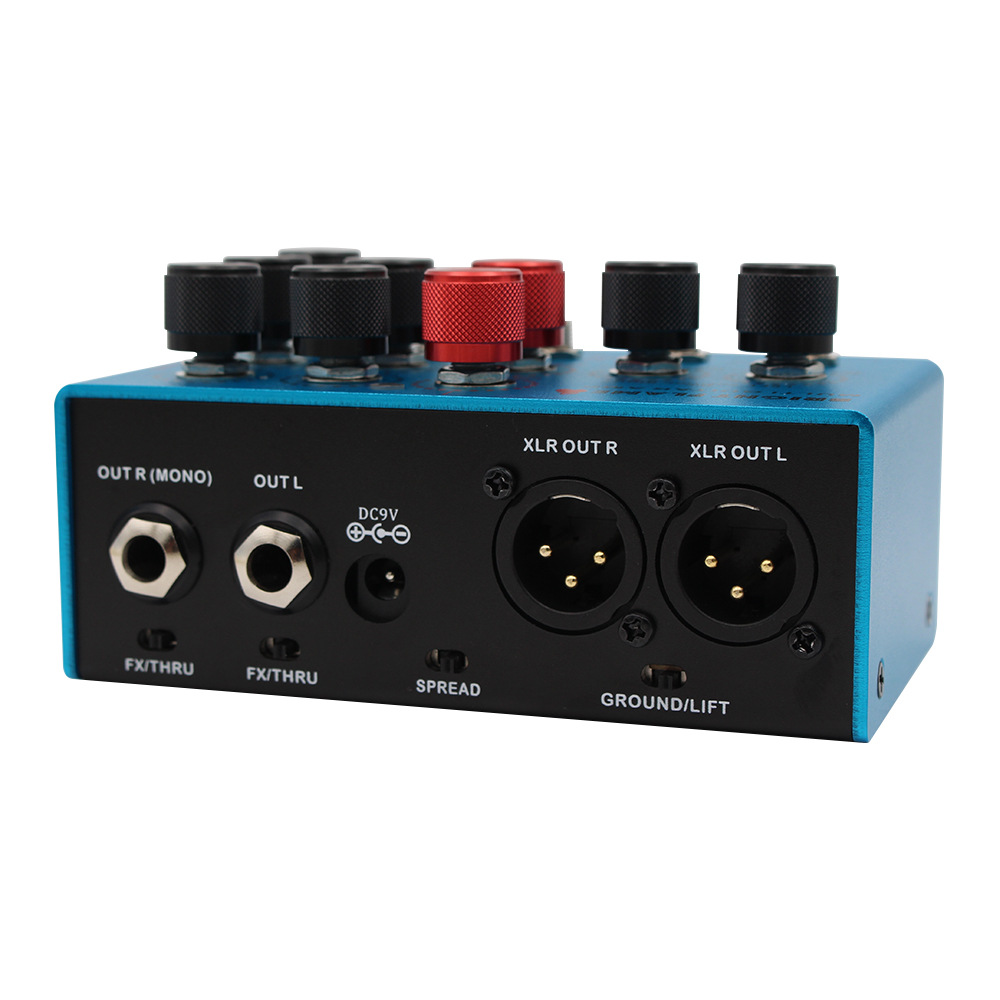

TRS OUTPUTS :

Each TRS output has a switch beneath them. You can use them if you want to use a different

amplifier in parallel, or use the signal to record the guitar without the effects, for later reamp on

the DAW.

RIGHT OUTPUT SWITCH:

OUT R: Same as XLR RIGHT OUT, in this mode you have the overall signal chain coming from

the RIGHT CABSIM of the Simplifier.

SUM MONO: This mode blends both channels of the Simplifier and turns into a Mono output.

Very useful when you’re sending full stereo signal thru the XLR outputs and need a mono signal

to add another device (mono monitor or single amp for example) without losing one of the

channels if you’re using both CabSims from FX Return.

LEF OUTPUT SWITCH:

OUT L: Same as in XLR LEFT OUT in this mode you have the overall signal chain coming from

the RIGHT CABSIM of the Simplifier.

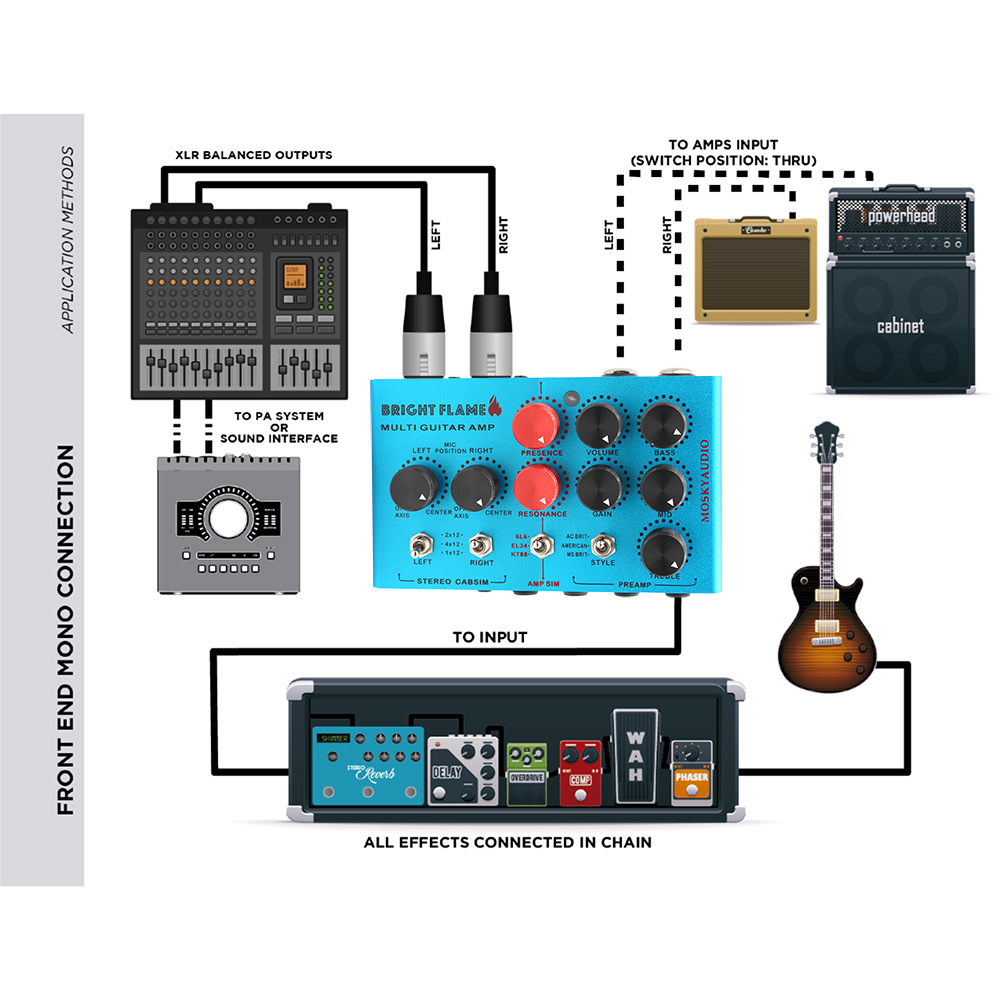

THRU: This output Bypasses completely the Simplifier taking your signal straight from the

PreAmp Input. Very useful for ReAmping purposes or just to take your pedals “in-front” right to

the input of your amp whilst can approach all other 3 outputs (2 x XLR + RIGHT TRS OUTPUT)

to your preferred devices as PA System, Audio Interfaces, FRFR Monitor, etc.

*This Bypass doesn’t include the FX LOOP signal.

Headphone Level: Controls the volume on the headphone output.

Technical Specs

Current consumption: 50mA to 100mA (if Headphone out is used)

Supply voltage: 9V - 12V

Polarity: Center negative

Input impedance: 1 Meg Ohm

TRS output impedance: 100 Ohm

DI Output impedance: 120 Ohm

Send output impedance 100 Ohm

Return Input Impedance: 1 Meg ohm

Headphone Power : 120mW @ 32 Ohm

Dimensions:

Width : 122 mm

Height: 64 mm

Depth: 73 mm

Weight: 422 g
